Batch 2, expected shipping date = Late April/ early May
See home page for more specs .
Build Style and Volume

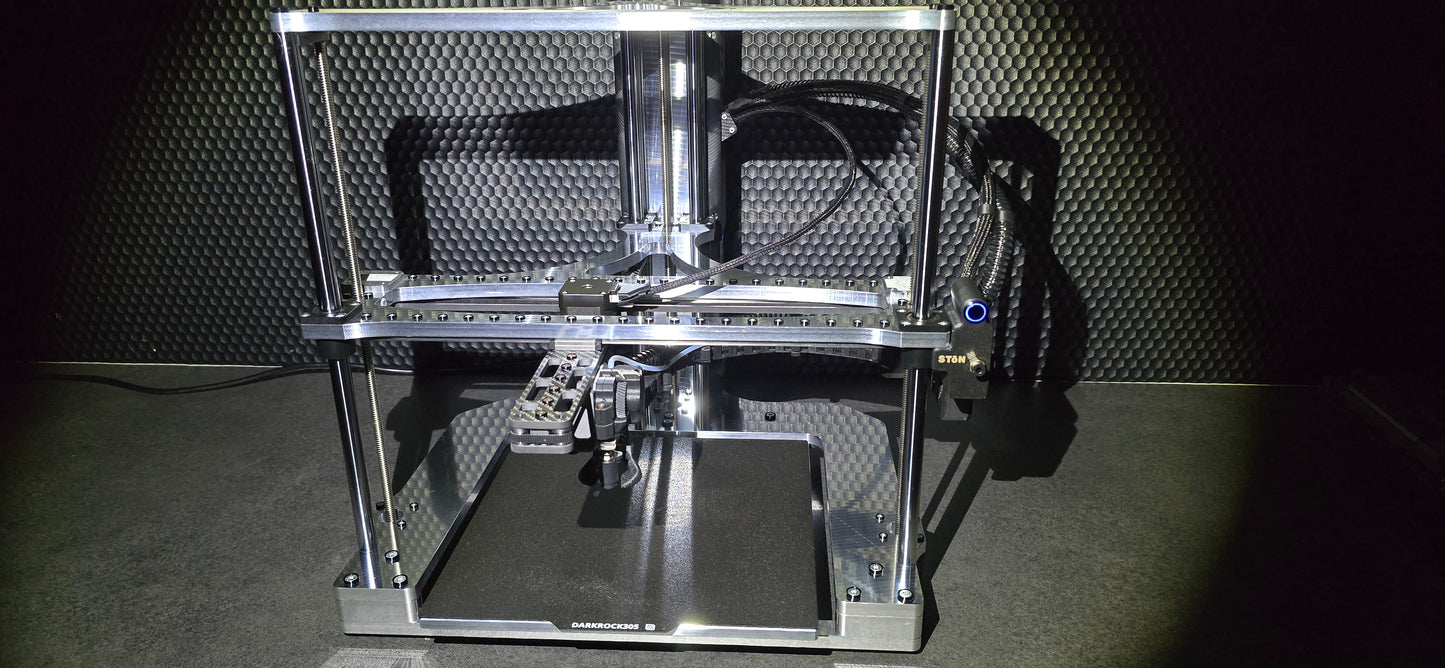

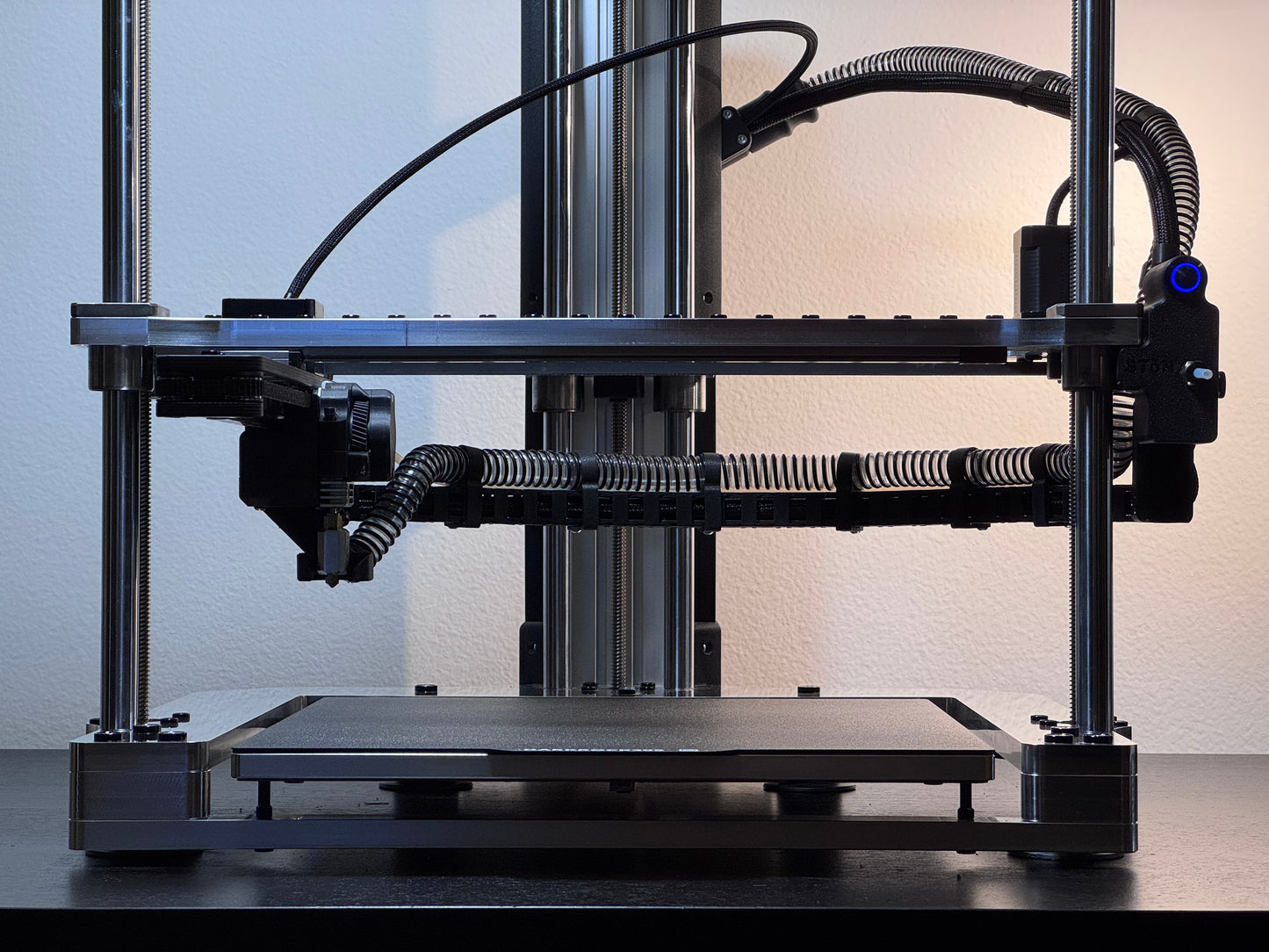

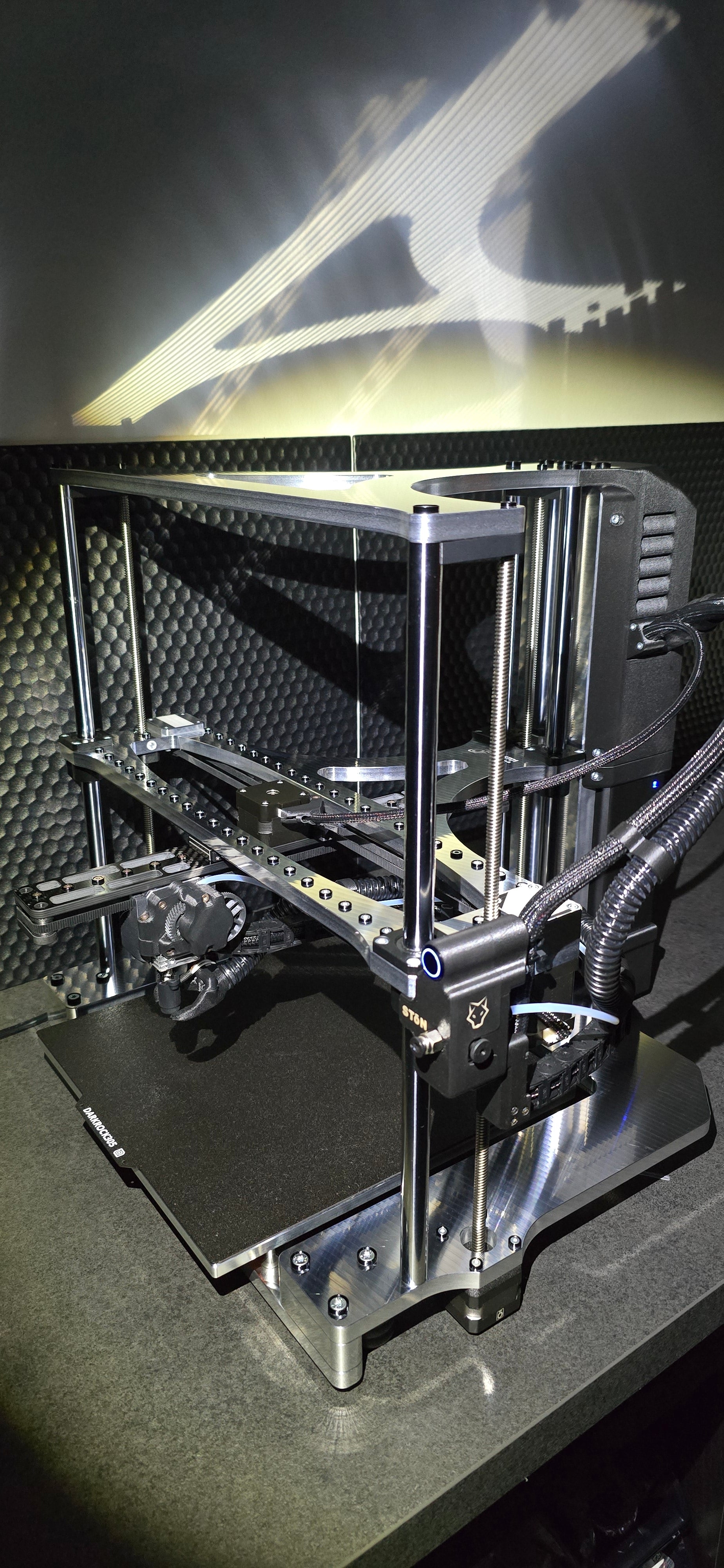

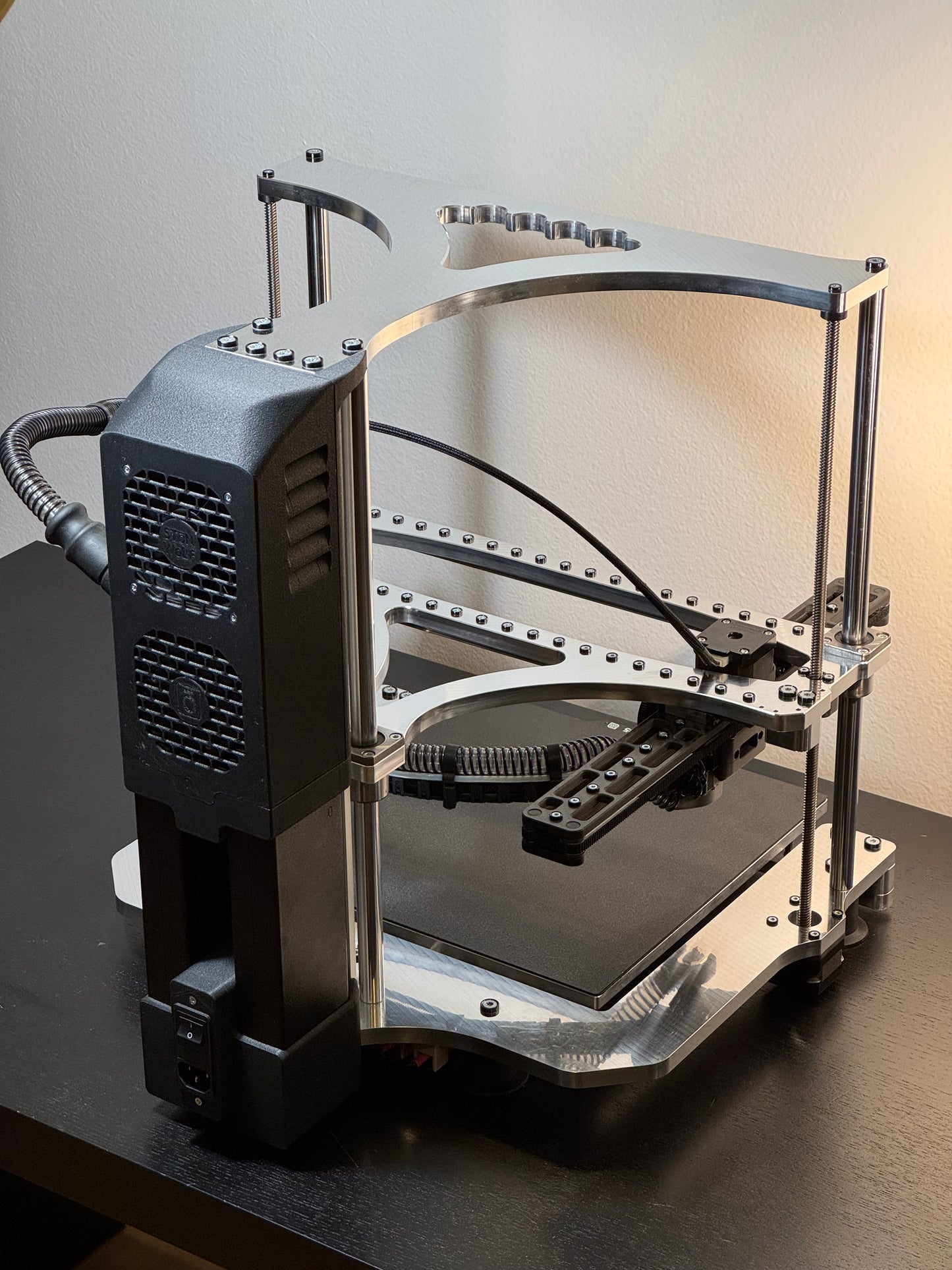

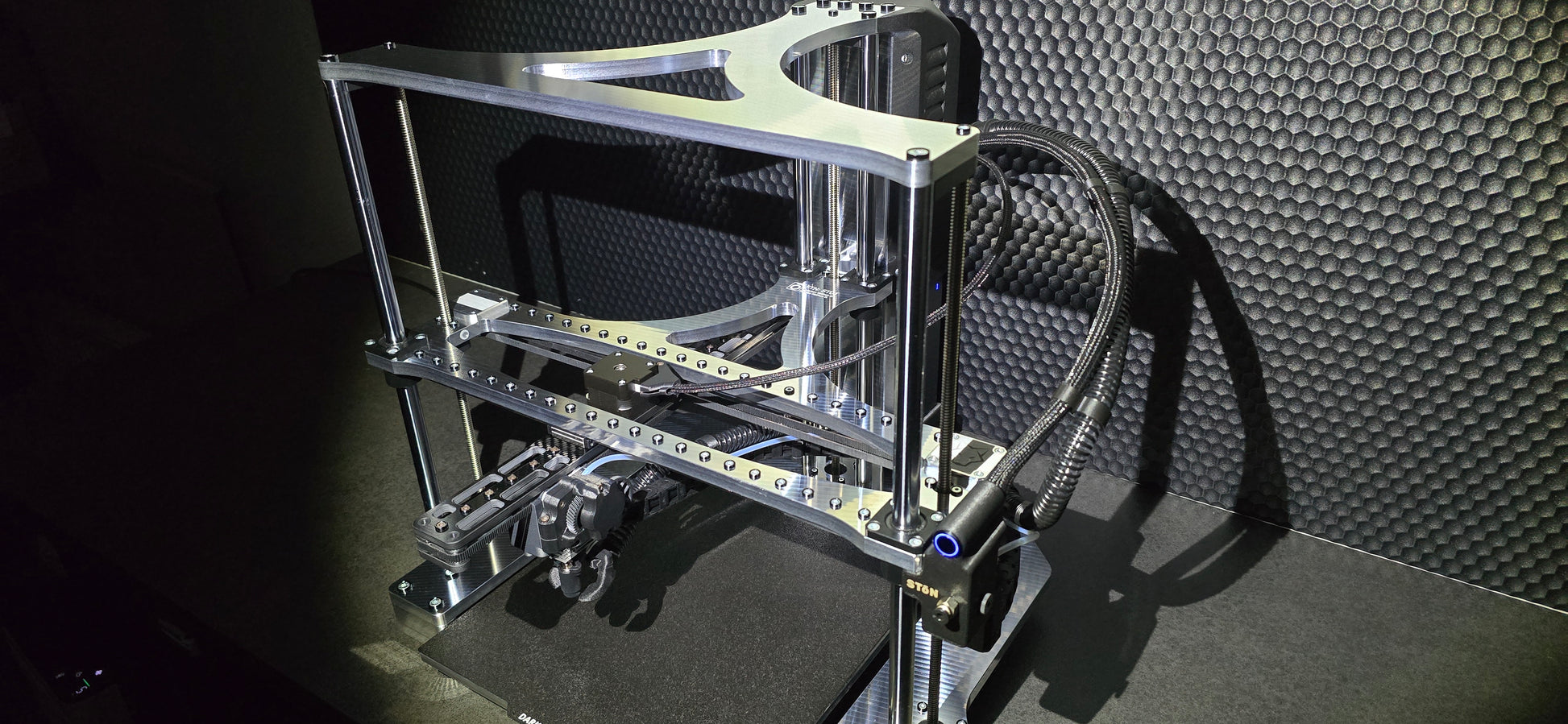

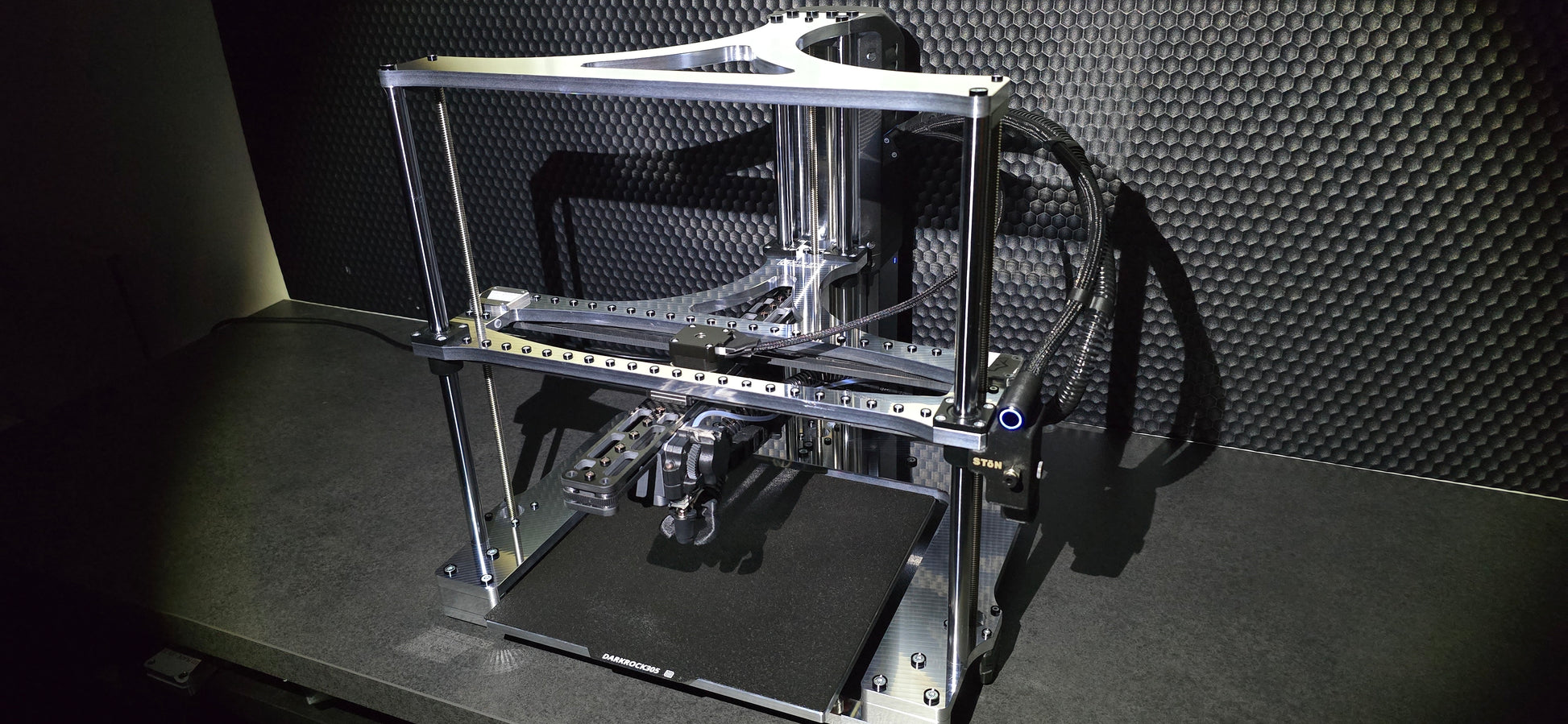

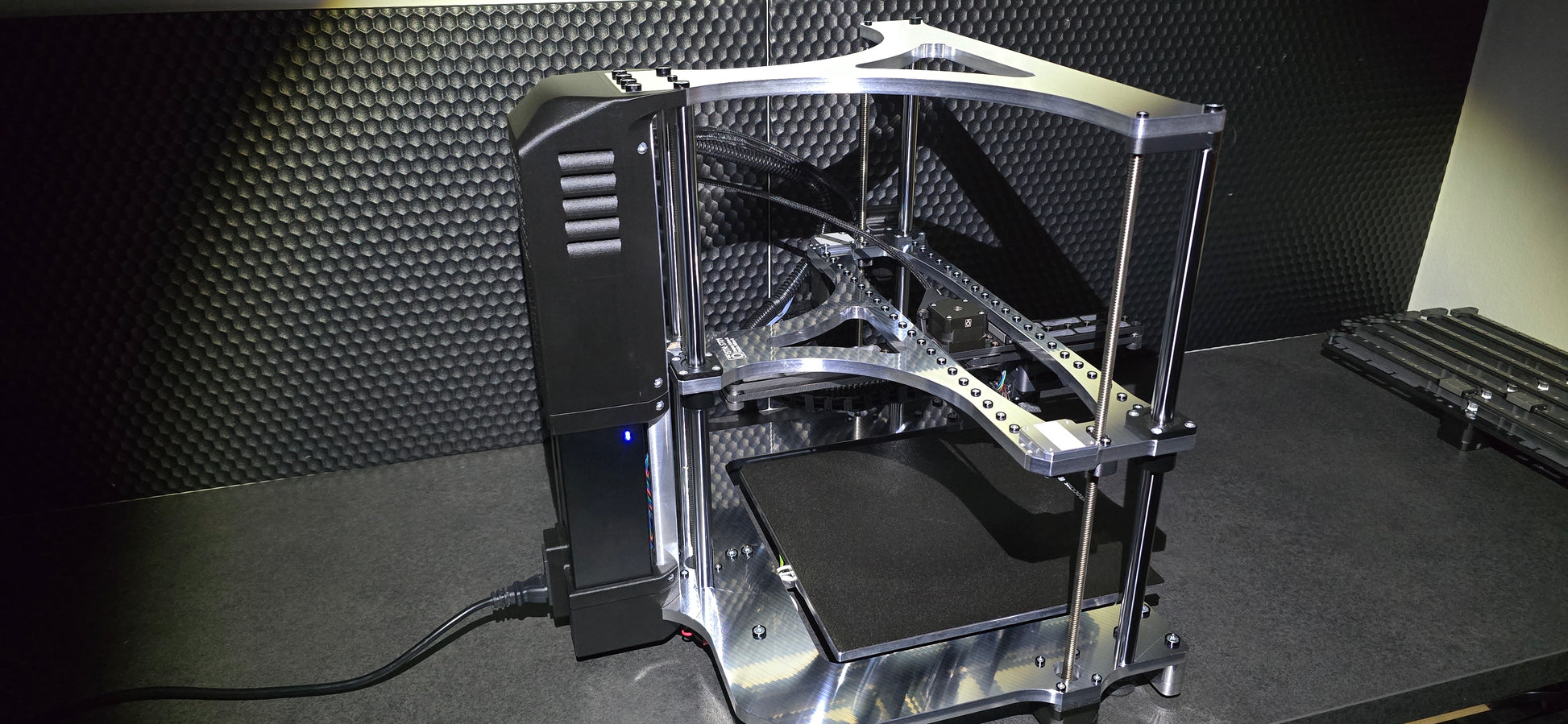

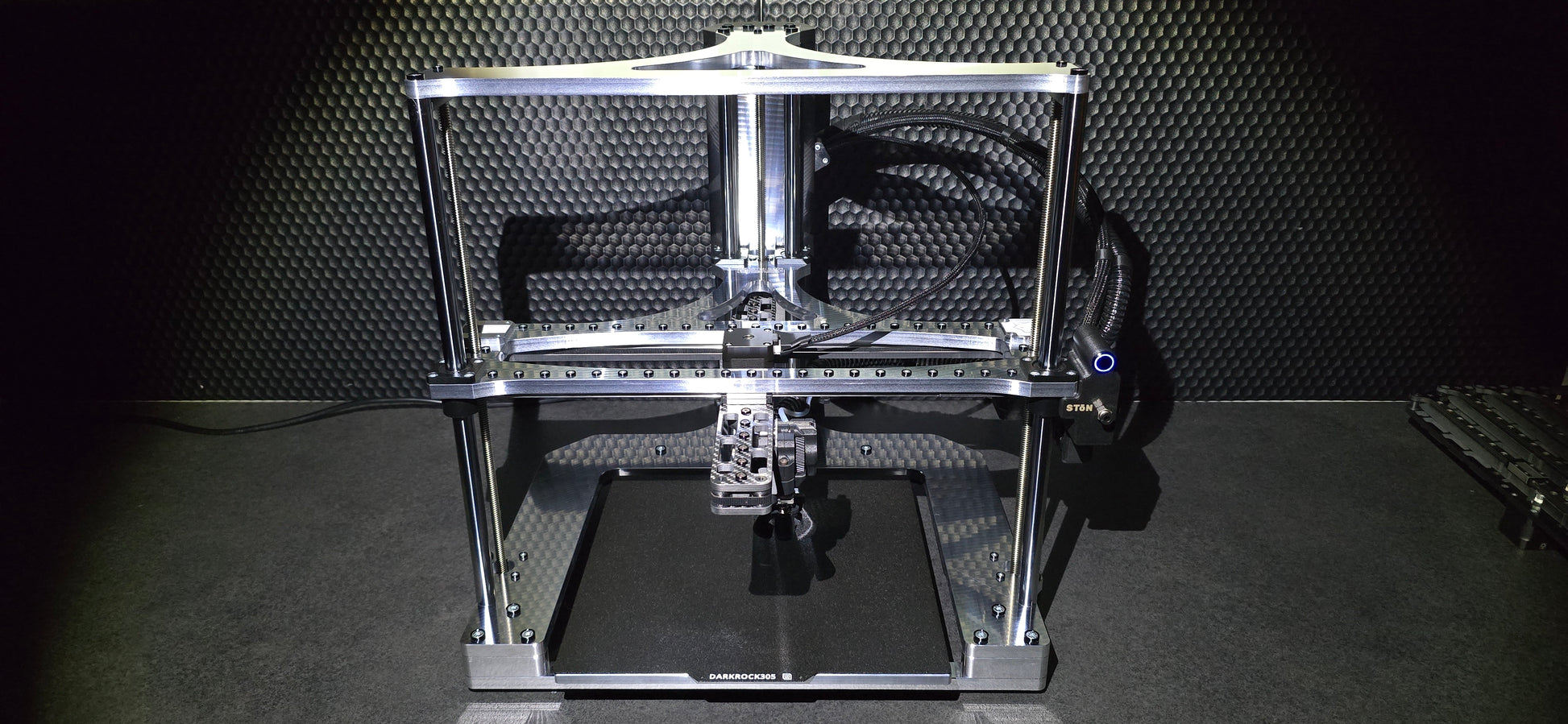

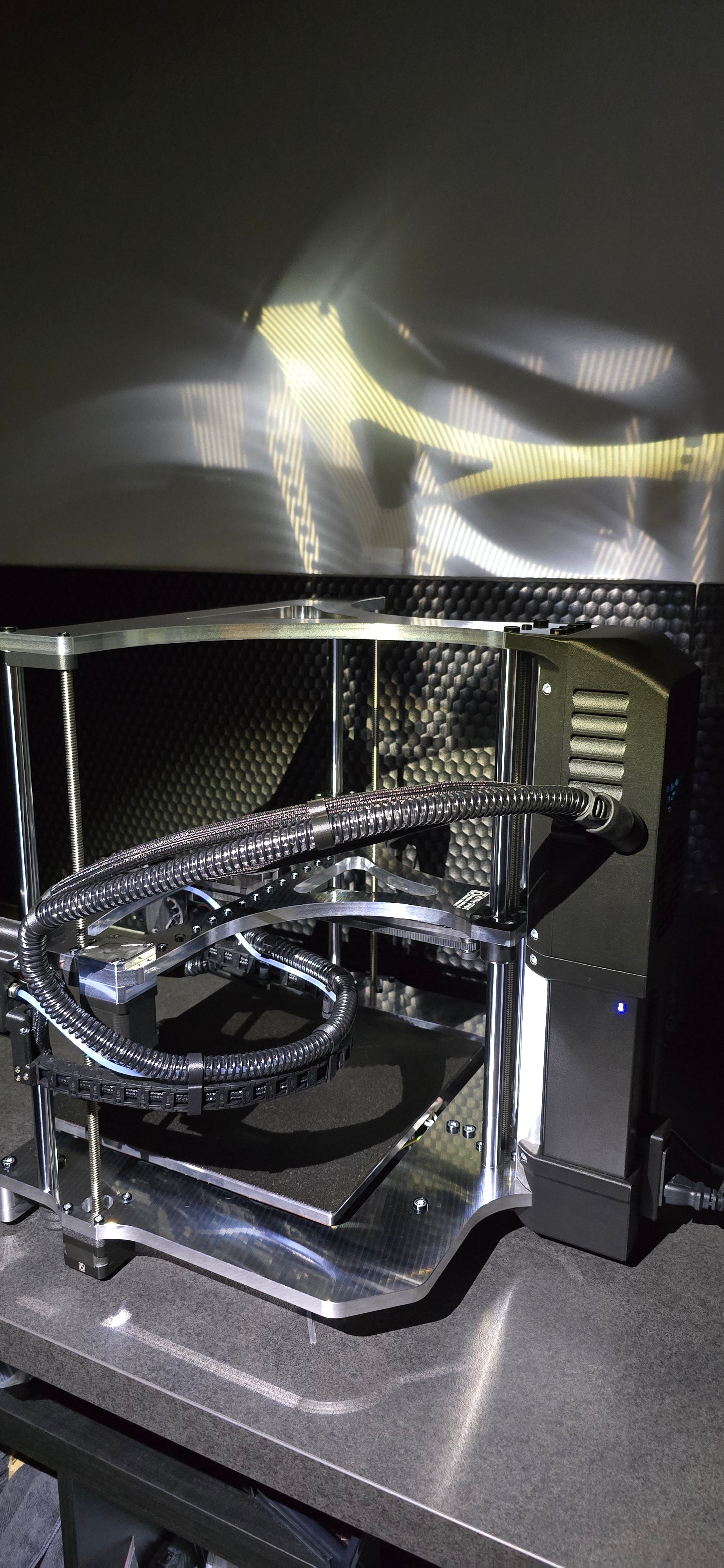

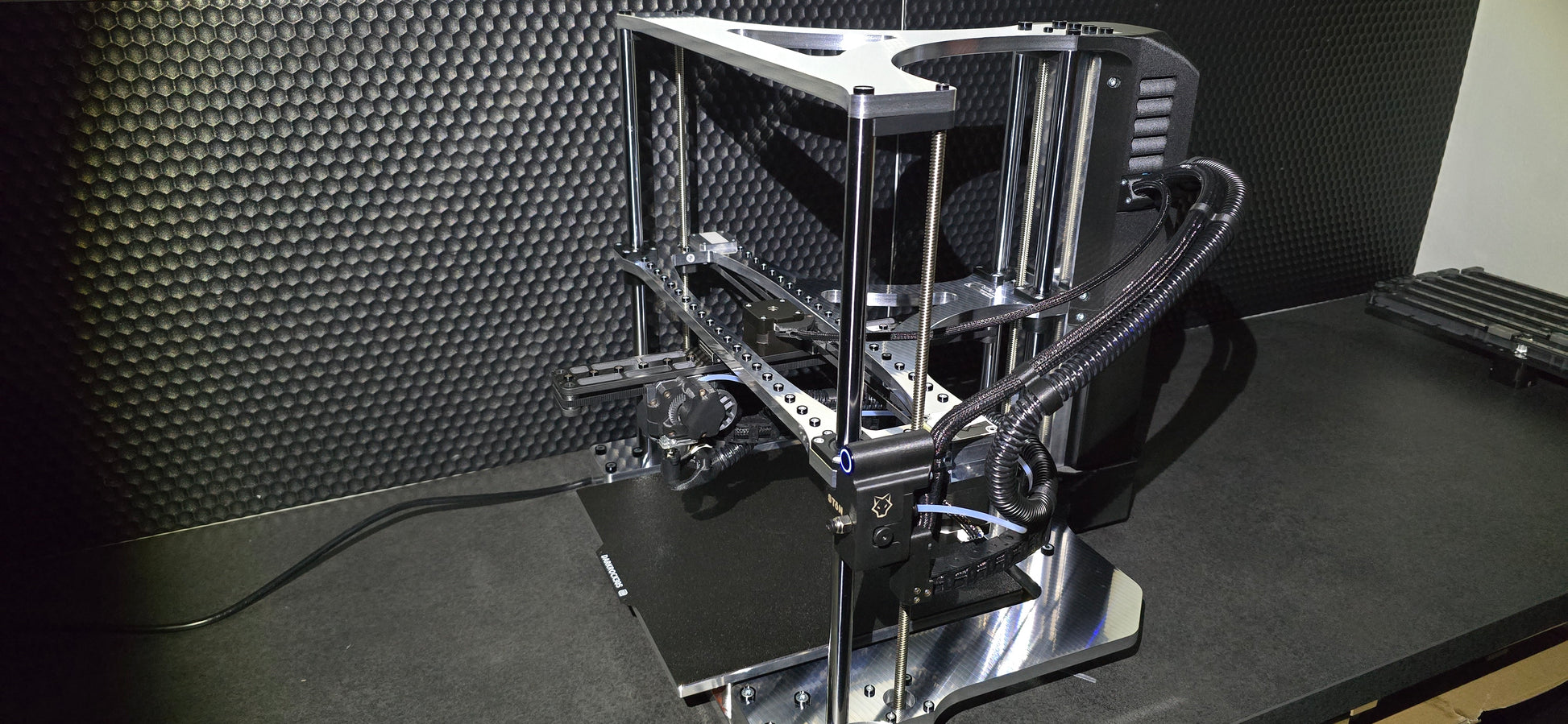

• Unique Cartesian “Flying Gantry” style.
- Shorter belts vs CoreXY.
- Frame remains rigid even in the center of the bed where we print the most.
• 300x300x285mm build volume.

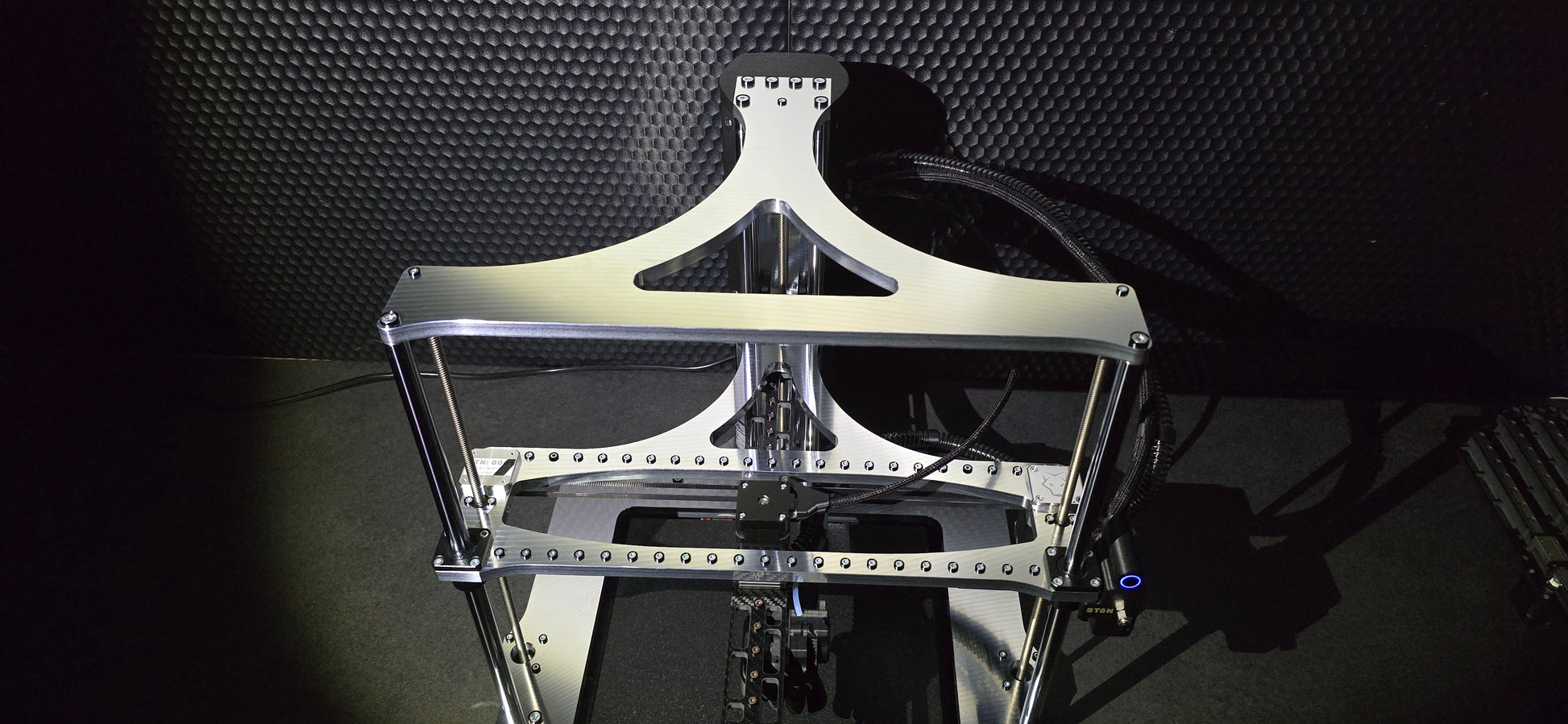

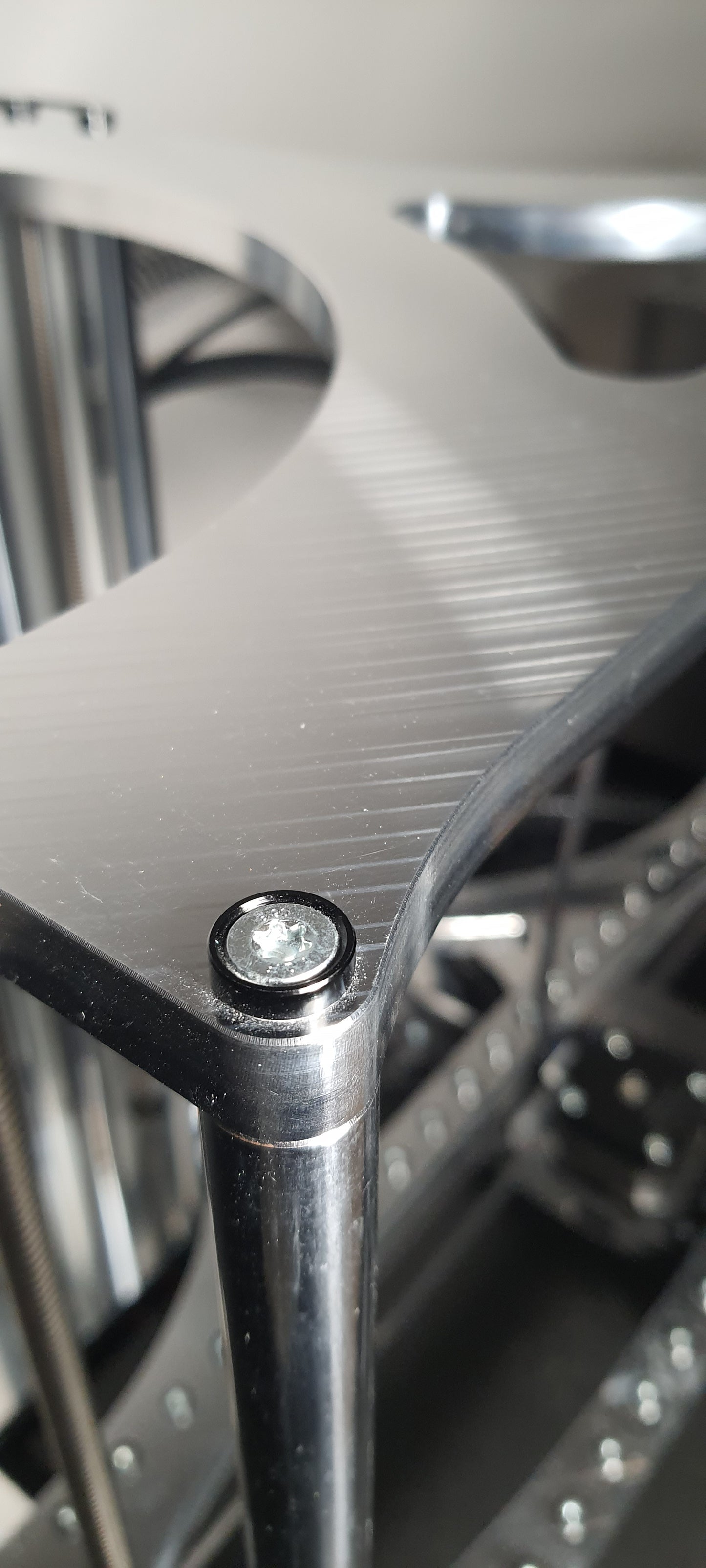

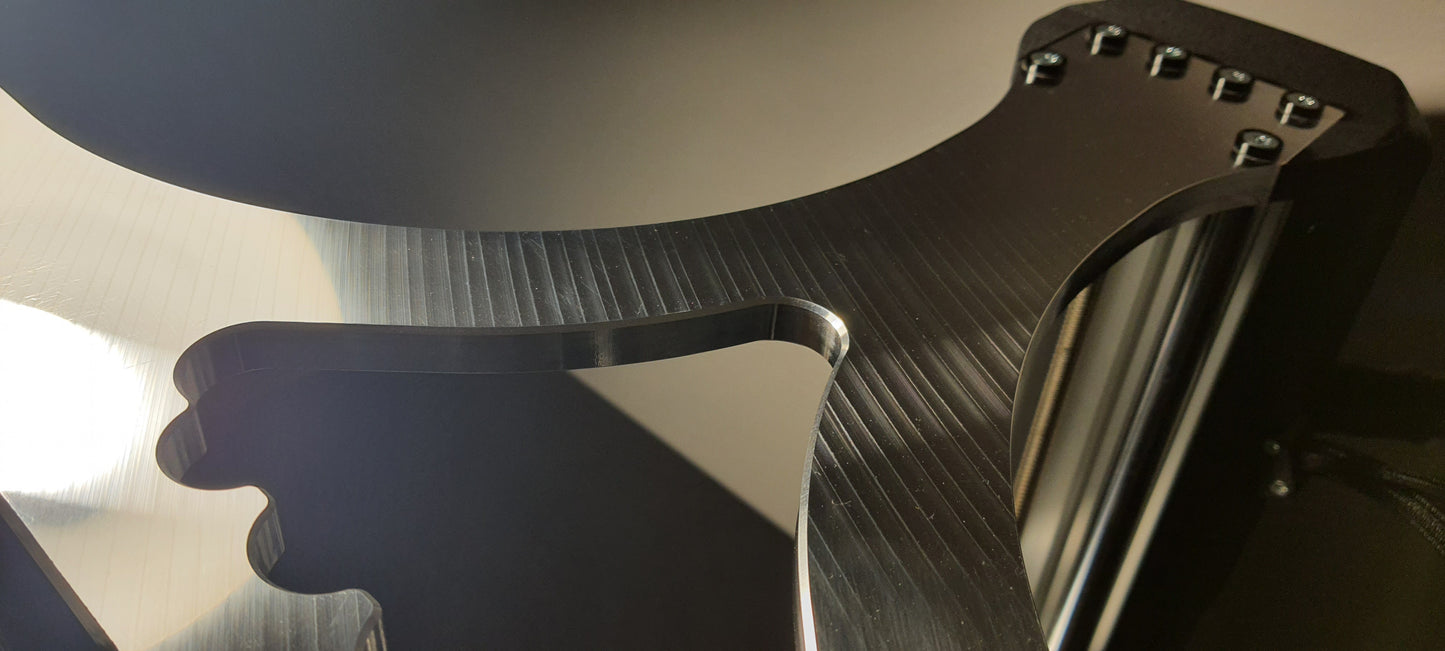

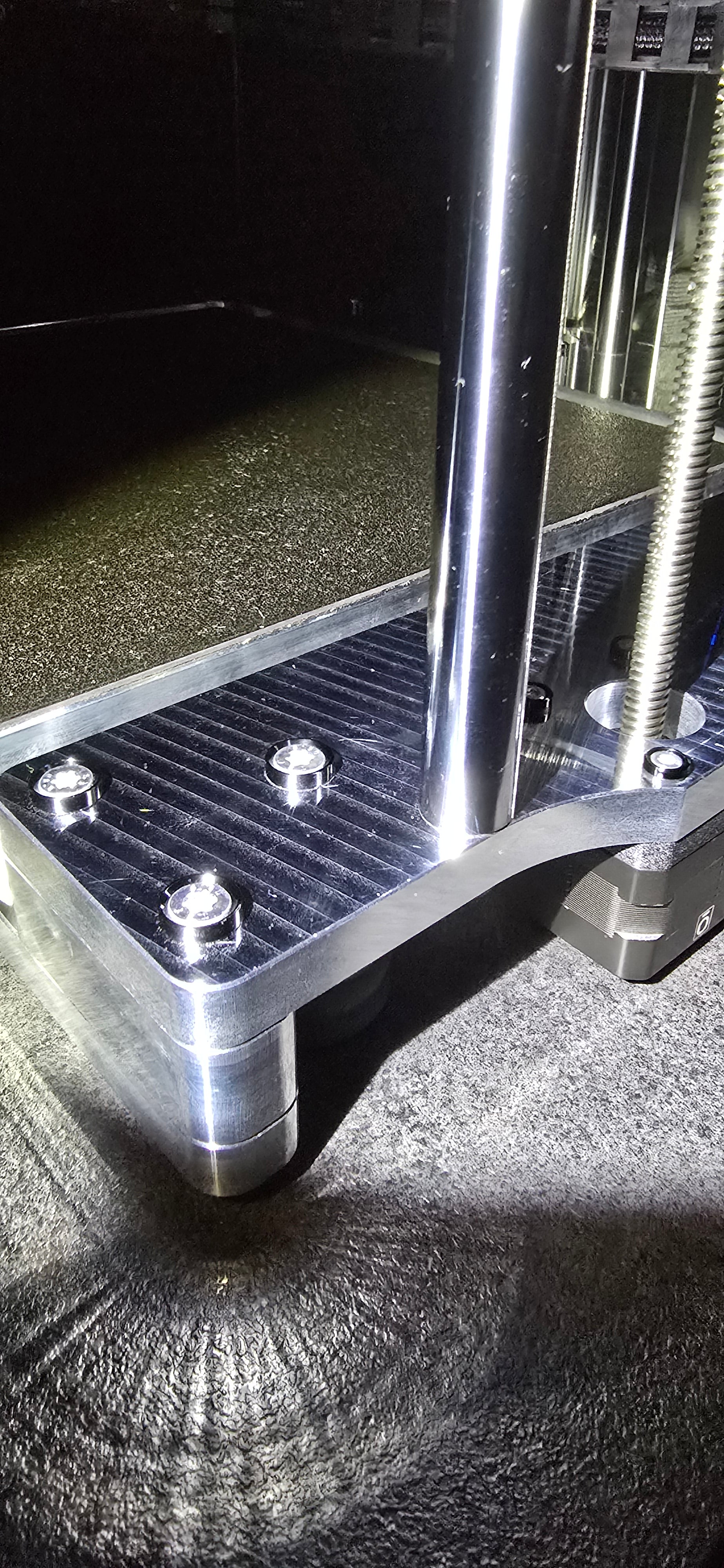

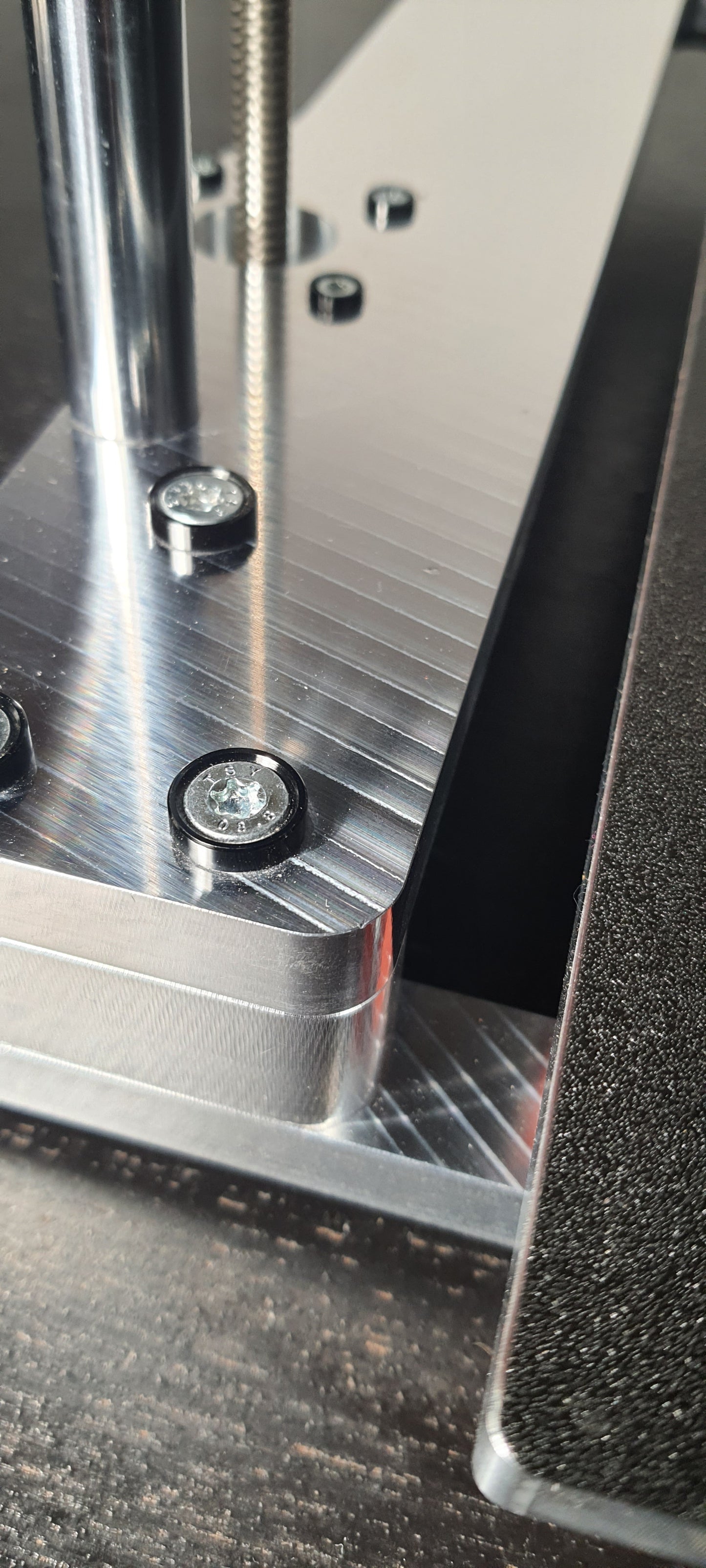

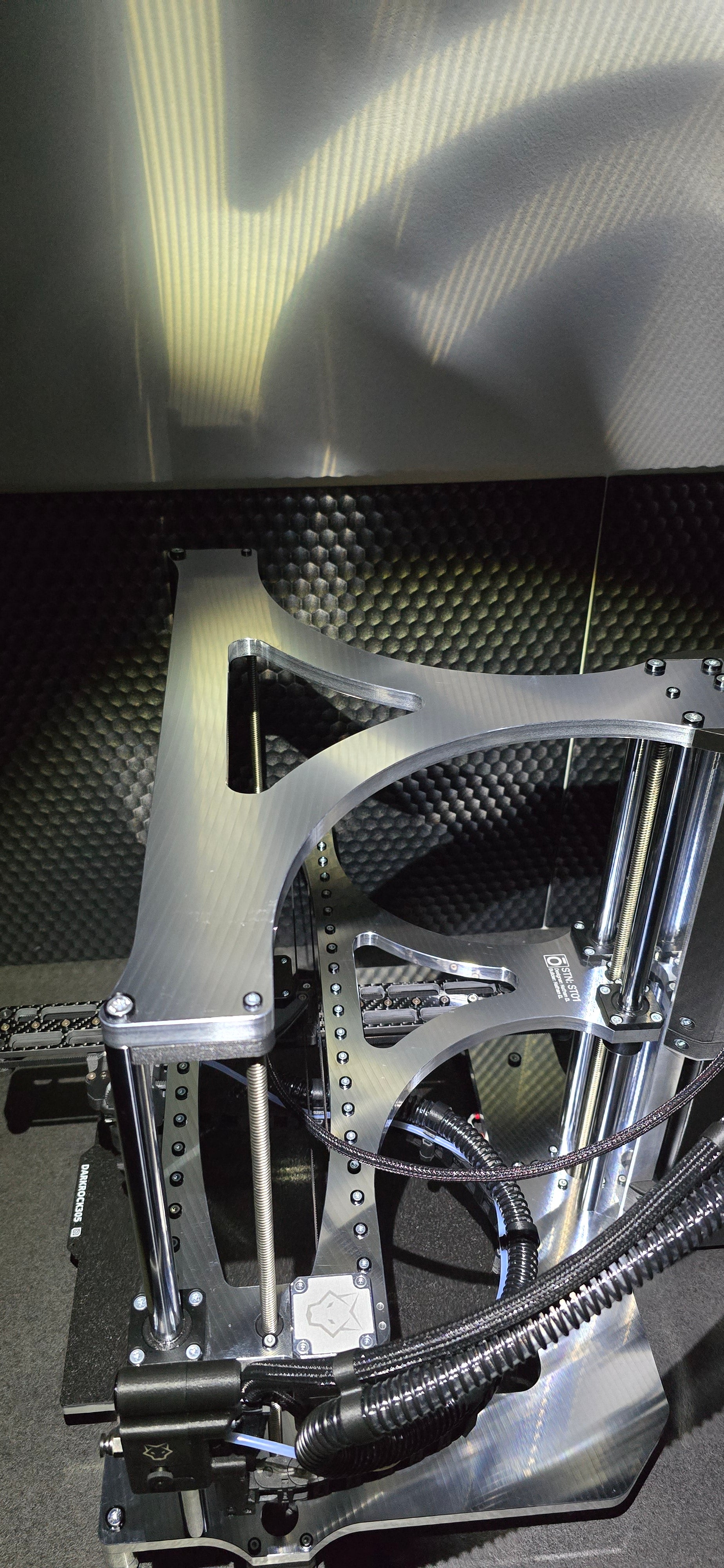

• 12mm thick CNC frame plates from Czech and German producers. Milled flat.

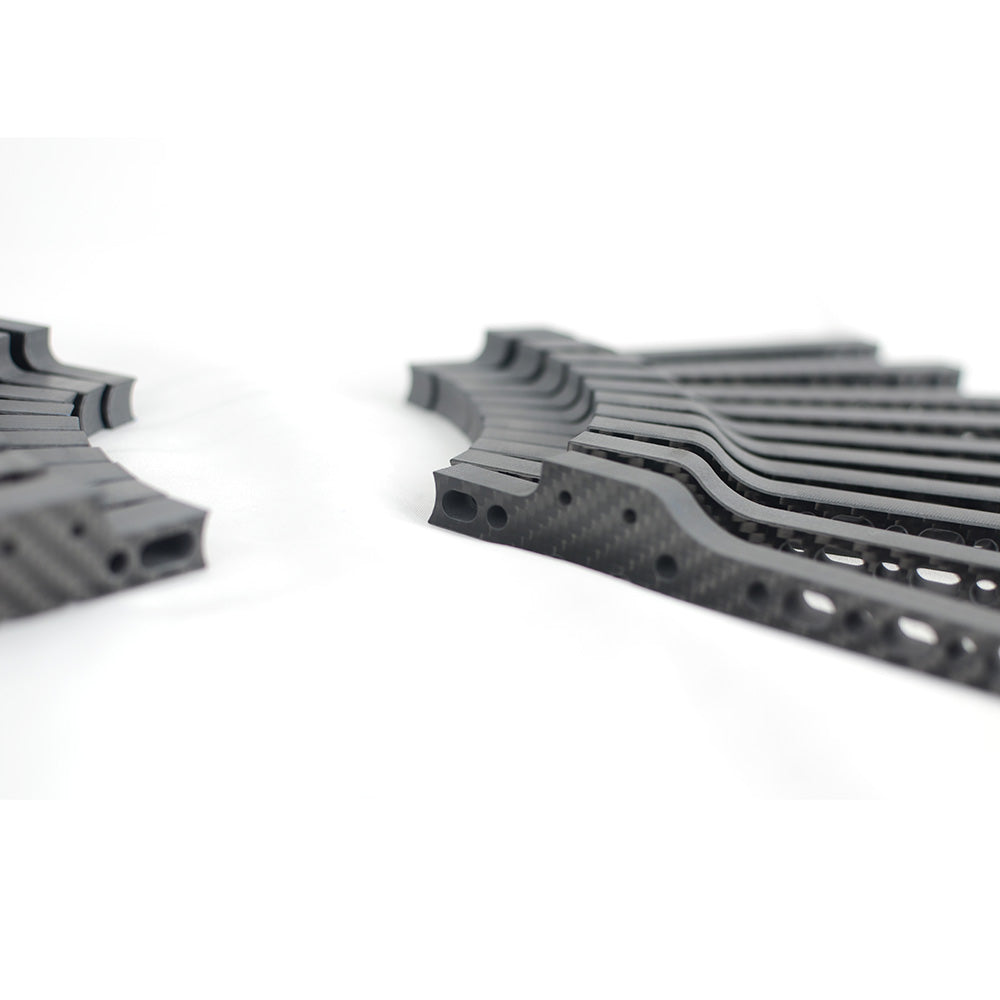

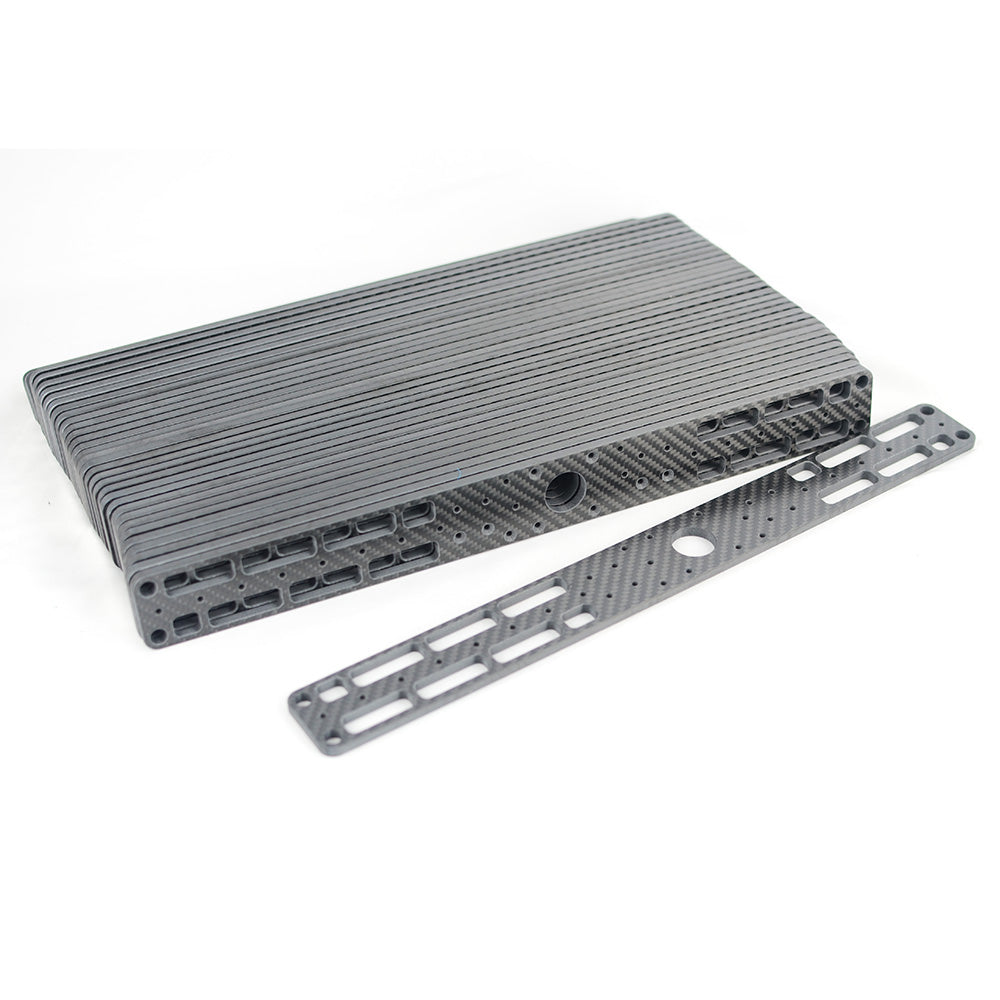

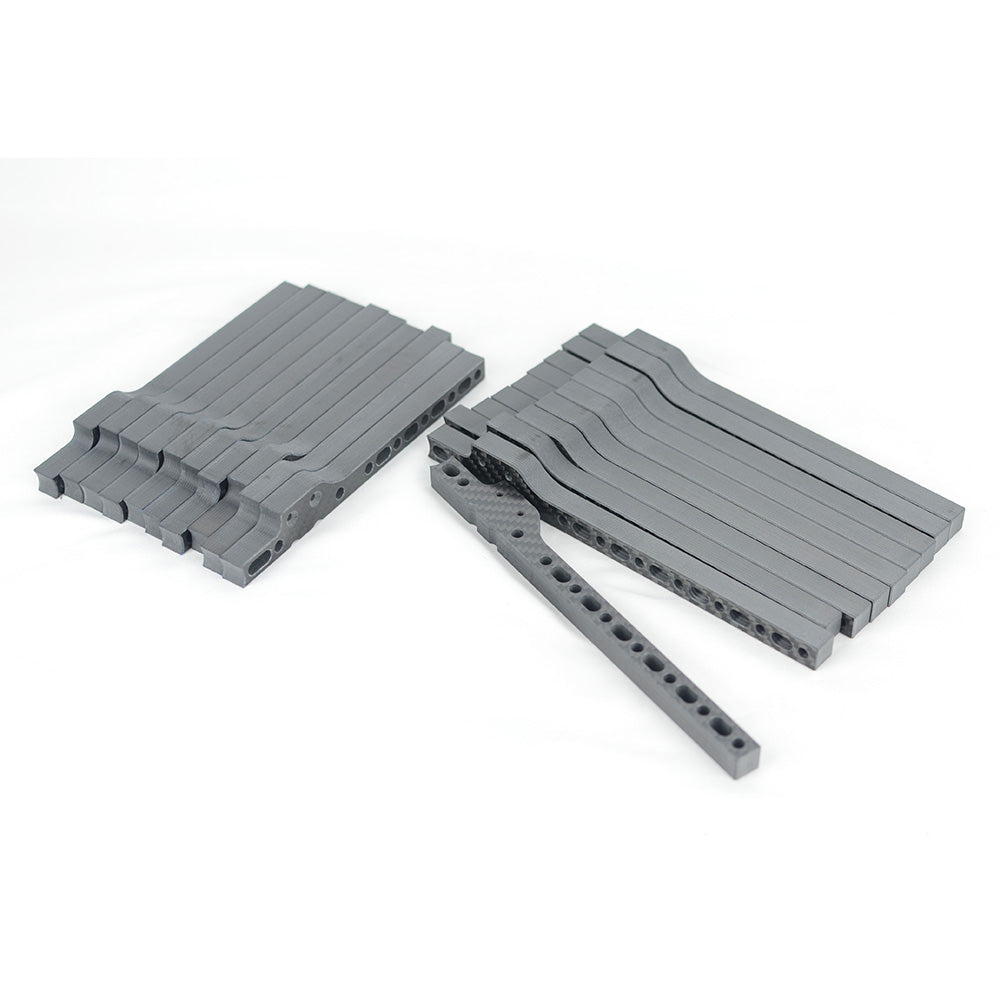

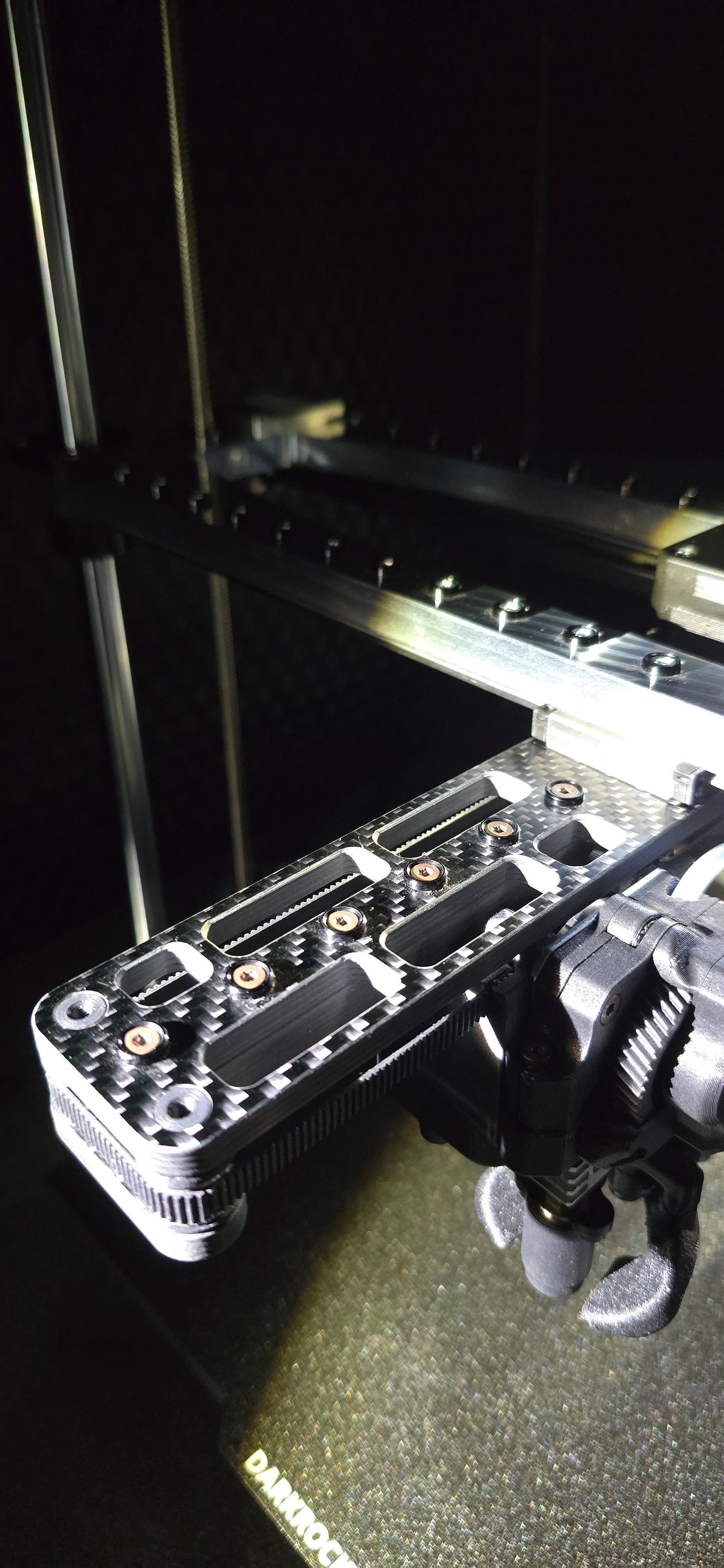

• Carbon fiber Y-gantry with high-temperature epoxy, 18mm thick.
Motion and Performance
• 48v XY motors with a driver max of 56v at 4.6amp (“Why not, life is short”). - LDO stepper motors for their reliability and high speed.
• 1500mm/sec travel speed at 30k accel (motors warm, not boiling).
• 300-600mm/sec print speed at 12-60k accel, depending on nozzle, filament type, and layer height (300-600mm/sec at 30k is a realistic perimeter speed).

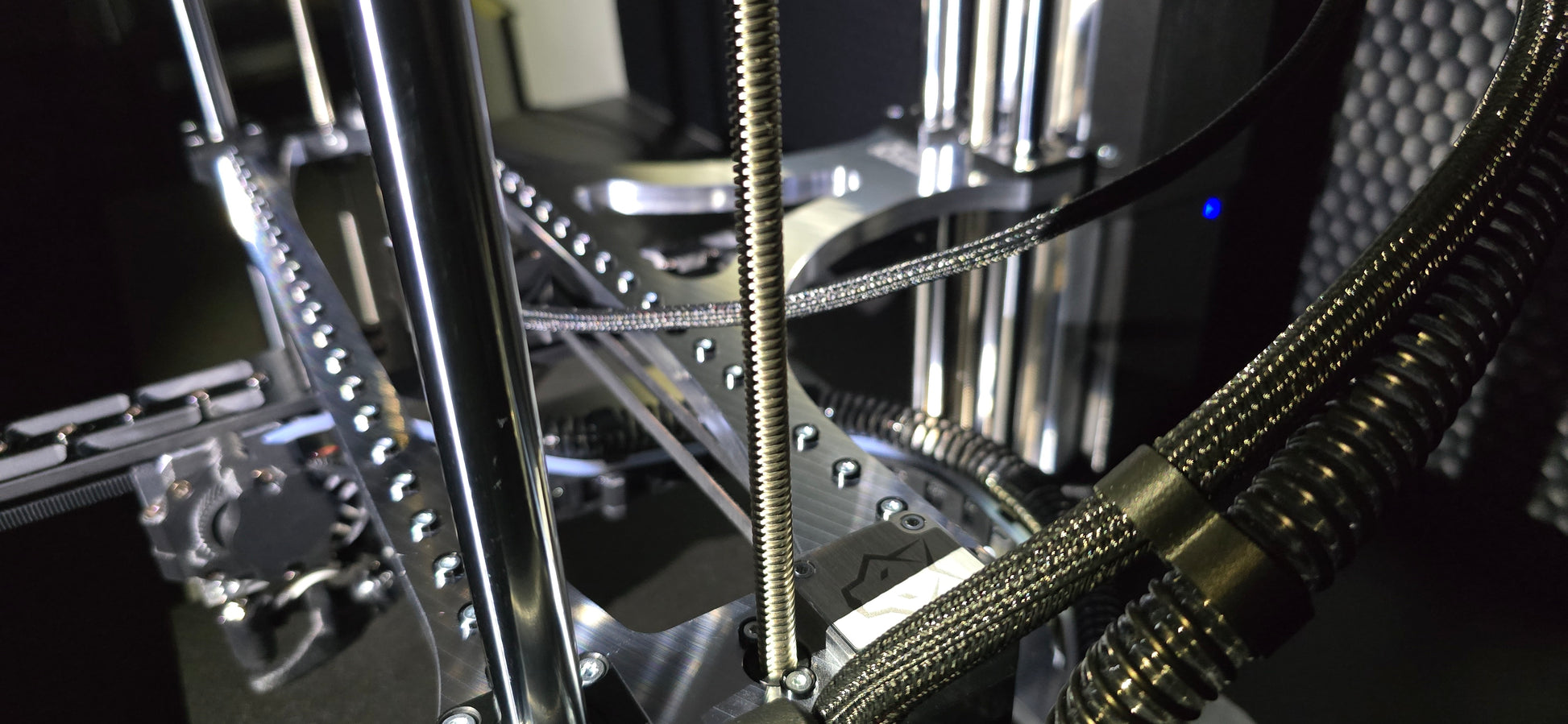

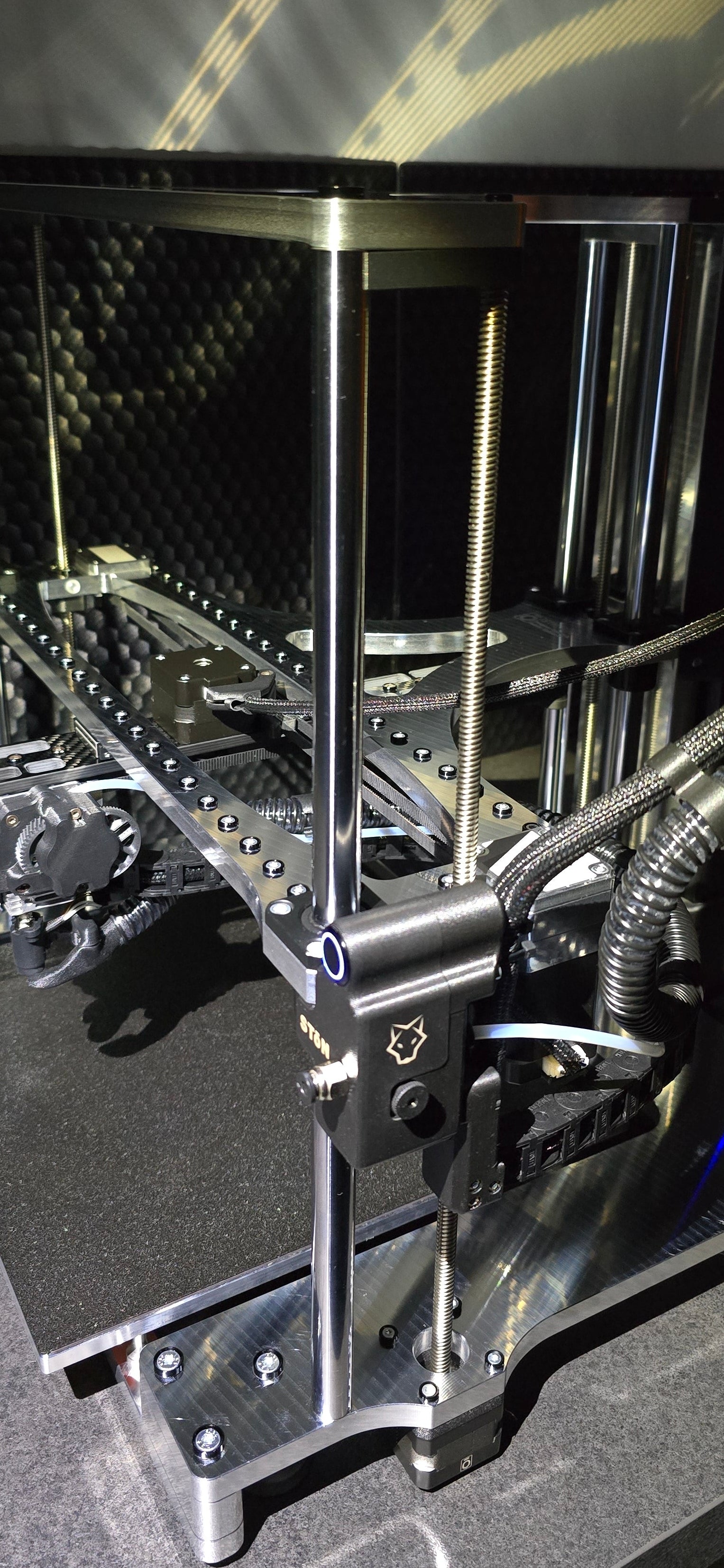

• 16mm Z-axis rods with precision bearings.
• Quality “MGN9H size” XY Linear rails. Identical lengths for part simplicity.
Bed and Build Plate
• VORON/LDO 305mm 600watt bed, 10mm thick cast and milled. Special thanks to VORON and LDO. Especially you Jason, thank you. - Bed probing using Genuine Adafruit load sensor
• LDO Darkrock305 professional build plate.

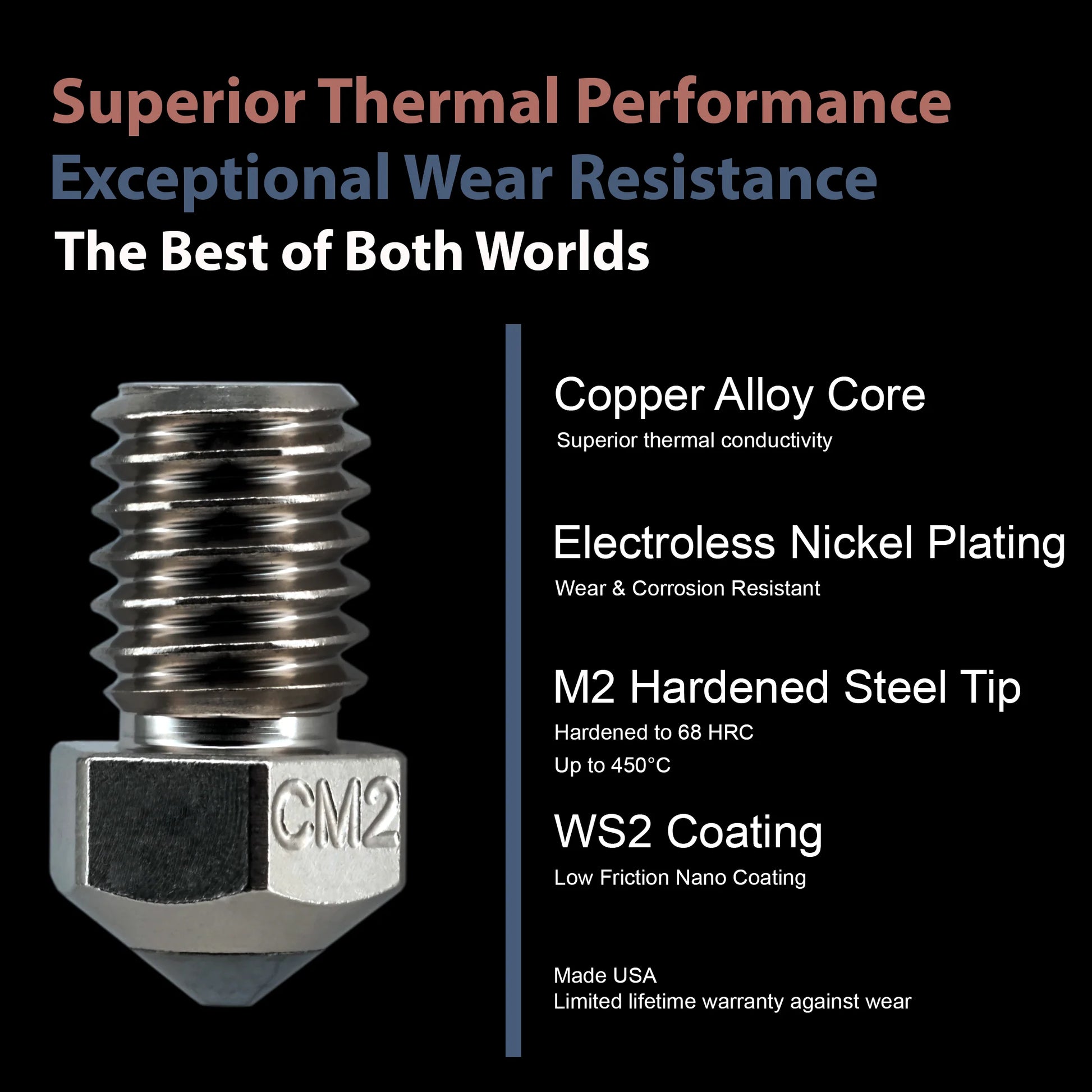

Hotend and Cooling - V6 nozzles accepted.
• Pt1000 temp sensor with a max temperature of 360°C (remove silicone sock above 290°C, as always).
• High-temp heatsink fan for an upcoming enclosure.

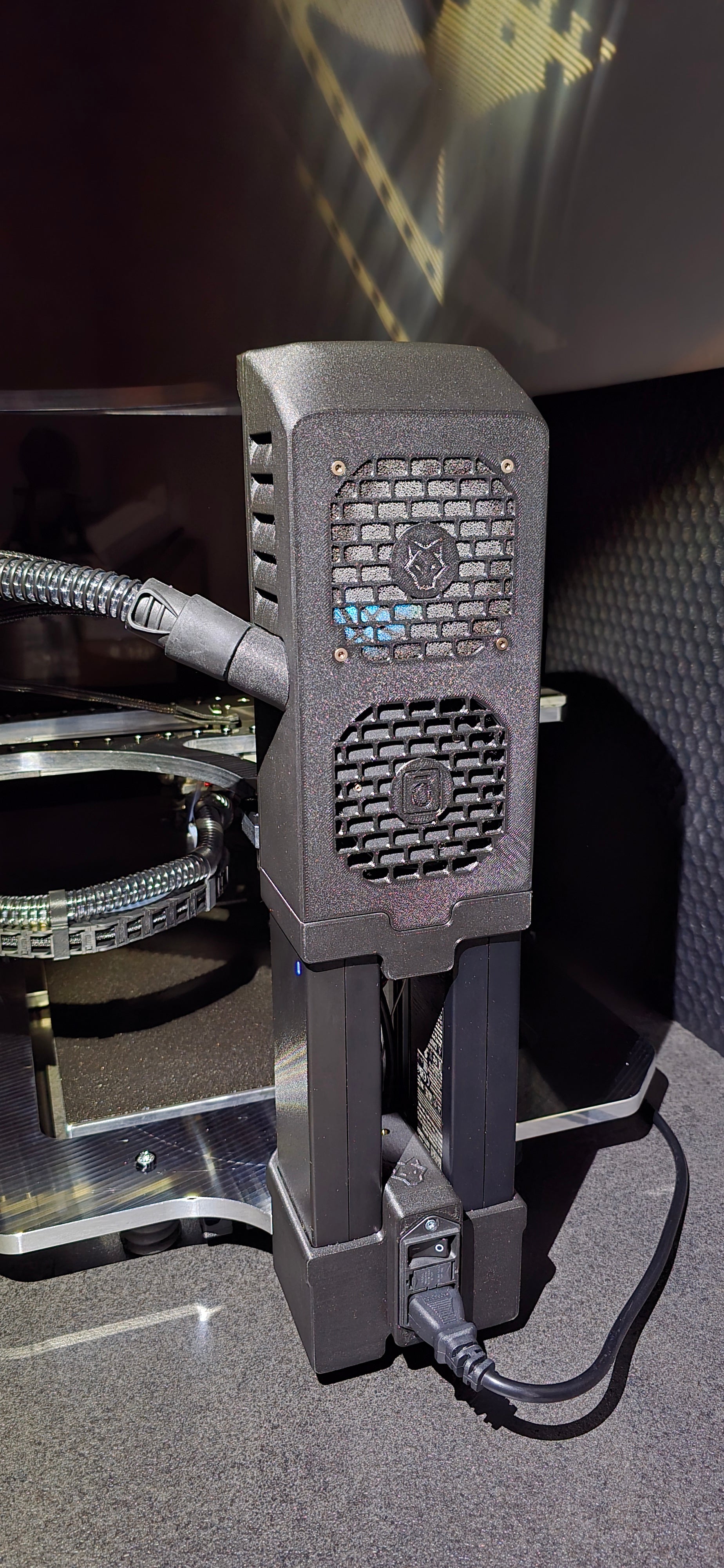

• CPAP 7040 remote fan with silencer box (not silent, but helps reduce noise).
Electronics and Software

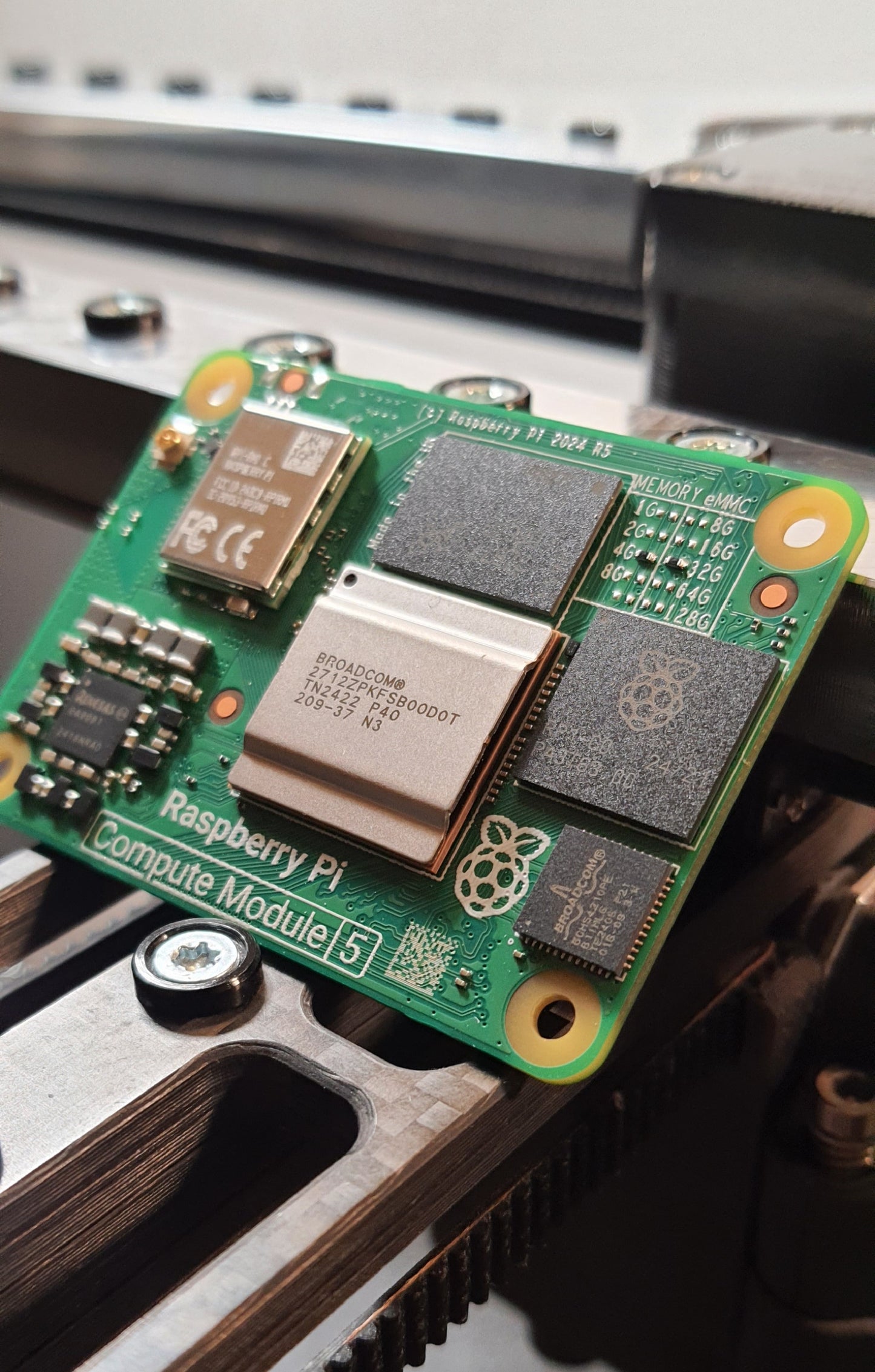

• RPi CM5 with 4GB RAM, 32GB SSD, and WiFi. (made in UK, Genuine)
• Default Klipper and Mainsail pre-installed, with Orca slicer profiles. Full freedom with open-source options.

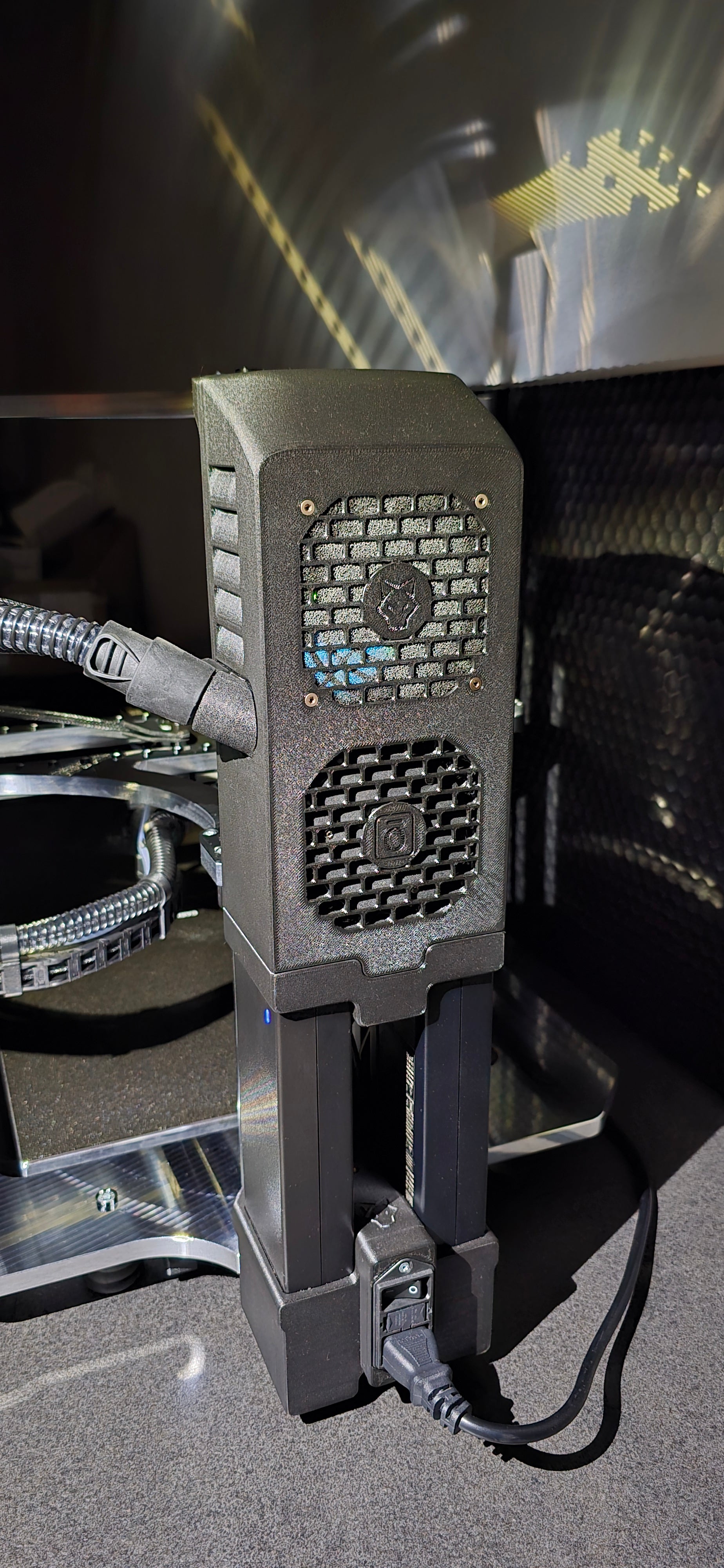

• EMF/EMI filtered input for personal safety and machine longevity. - Genuine Mean-Well PSU. no need to touch mains power to replace. Just plug in.
- HDMI, USB-A , ethernet ports
- Proper heatsink mounting for SSR (solid state relay).
- Emergency stop switch
- Mobileraker App ready for remote access and print updates
Filament Management

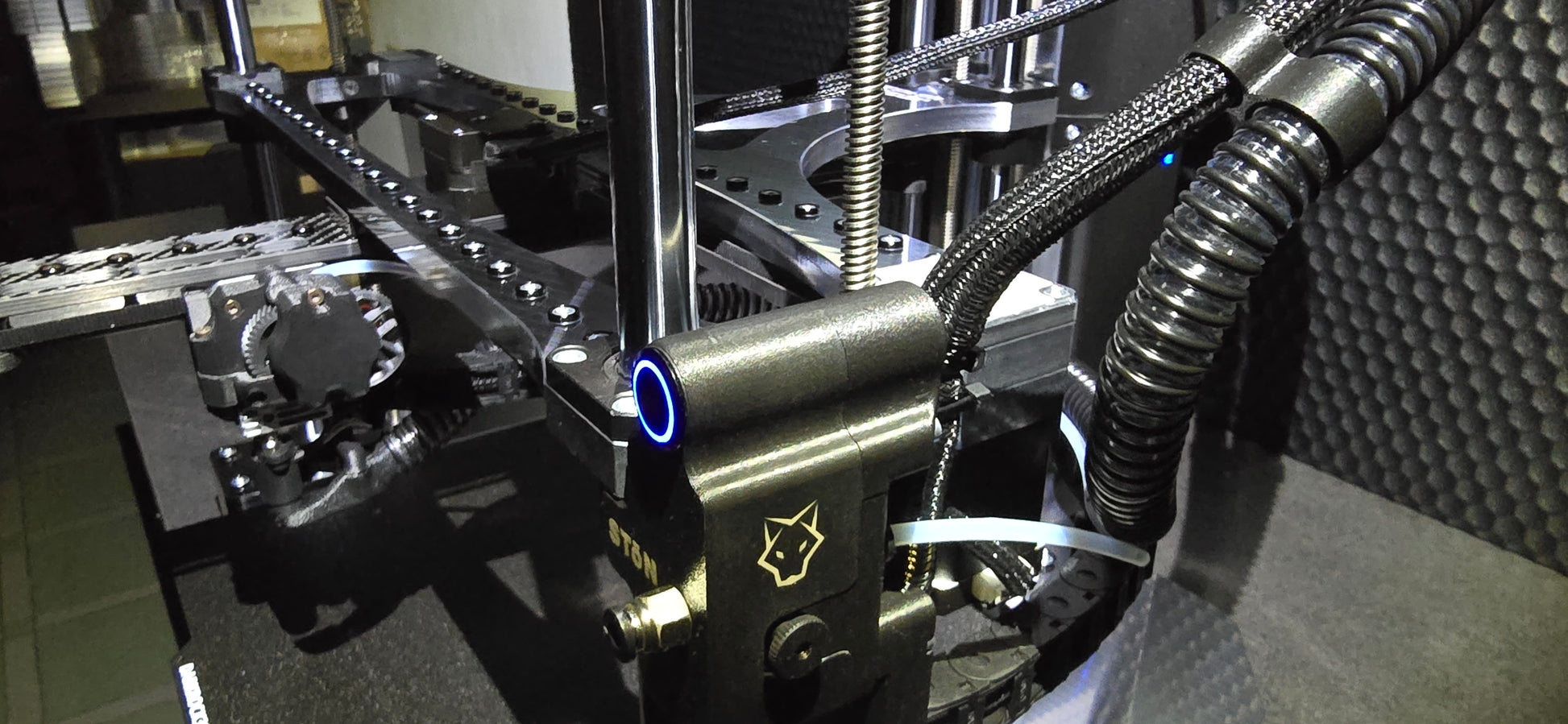

• Filament clog/tangle detector for peace of mind.
• Filament runout switch.
Enclosure and Extras
• Enclosure not finished. Focused on getting the bare chassis done right first. Expected summer 2025. It will be worth the wait.
- Camera and display are not included but are plug-and-play. We will offer some compatible units on our shop as an upgrade option after they arrive. (Most any klipperscreen will work. Mobile phone or tablet also)
- Feel free to write us to tell us what we need. We are very open to suggestions and working hard to improve everyday.
